Description

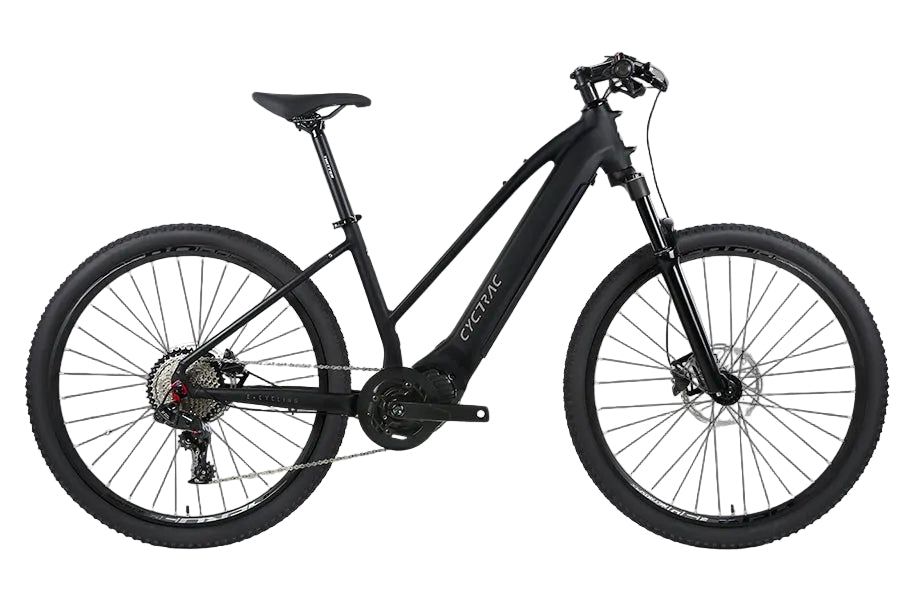

e bike damen mountain EC1Key Components EC1 (SP)ConfRev Options RS10S + M560 500W M4100 10S + M560 500W M6100 12S + M560 500W Frame & Structure Frame: CYCTRAC EC1, Alu alloy AL6061 T6, Flat weld & Smooth, Inner cables Frame Size: 27. 516" Bike Color: MatteBlack MatteDarkGray CementGray DarkGreen Net Weight: 22. 5KG (RS10S M4100) 22. 7KG (M6100 12S) Max Load: 160 KG Fork: RS, Alu alloy, Coil suspension, Manual lockout Head Sets: Inner cables routing, Sealed bearings 5252mm
Key Components
EC1 (SP)ConfRev Options
-
RS10S + M560 / 500W
-
M4100/10S + M560 / 500W
-
M6100/12S + M560 / 500W
-
Frame: CYCTRAC EC1, Alu alloy AL6061-T6, Flat weld & Smooth, Inner cables
-
Frame Size: 27.5×16"
-
Bike Color: MatteBlack / MatteDarkGray / CementGray / DarkGreen
-
Net Weight:
-
22.5KG (RS10S / M4100)
-
22.7KG (M6100 12S)
-
-
Max Load: 160 KG
-
Fork: RS, Alu alloy, Coil suspension, Manual-lockout
-
Head Sets: Inner-cables routing, Sealed bearings 52×52mm
-
Handlebar Sets: RS, Alu alloy, Matte, Handlebar 31.8×720, Stem 60, Seat post 31.6×350, Clamps 34.9mm QR
-
Motor System: Bafang Mid, M560, 48V 500W
-
Max Torque: 140 Nm
-
Battery: Samsung 21700 Li-ion, 720Wh, 48V15A
-
Endurance (Pedal Assist): Max 120–140KM
-
Speed Limit: 25KMh Default (max 45KMh)
-
Pedal Sensor: Torque + Cadence, Throttle available
-
Charging Time: 5–6 Hours
-
Charger: 3A, DC2.1
-
HMI: CYC-C101, LCD digital, USB/Type-C
-
Waterproof: IP X6
Variant 1 – RS10S + M560 (10-Speed)
-
Derailleur Lever: RS (LTWOO) V5010-10S
-
Rear Derailleur: RS (LTWOO) V5010-10S
-
Cranksets: Matching with Mid Motor, 38T
-
Cassette: SUNSHINE-10S, 11-36T
-
Chain: SUMC-10S
-
Derailleur Lever: SHIMANO DEORE M4100-10S
-
Rear Derailleur: SHIMANO DEORE M4120-10S
-
Cranksets: Matching with Mid Motor, 38T
-
Cassette: SUNSHINE-10S, 11-36T
-
Chain: SUMC-10S
-
Derailleur Lever: SHIMANO DEORE M6100-12S
-
Rear Derailleur: SHIMANO DEORE M6100-12S
-
Cranksets: Matching with Mid Motor, 38T
-
Cassette: SUNSHINE-12S, 11-50T
-
Chain: SUMC-12S
-
Hub: RS Alu alloy, 2-sealed Bearings, HG, Disc, 32 Holes
-
Rim: RS, Alu alloy with Double-wall & Rivets, W30×H21mm
-
Spoke: SHUNJIU, Circular 14G
-
Tire: CST, 27.5×2.4"
-
Brake: SHIMANO MT200 hydraulic disc brake, 180/180mm
-
Grips: Circular 22.2×120mm, PU leather & locking Ring
-
Saddle: RS, Comfortable and Thickened for MTB
-
Pedals: RS, Alu alloy & Skid resistant for MTB
